Products
The QIAsymphony DSP Circulating DNA Kits are intended for in vitro diagnostic use.
QIAsymphony DSP Circulating DNA Kit (192)
Cat. No. / ID: 937556
The QIAsymphony DSP Circulating DNA Kit utilizes magnetic-particle technology for automated isolation and purification of human circulating cell-free DNA from biological specimens. Includes Reagent Cartridges, accessories and Proteinase K vials for 192 preps of 2000 µL or 4000 µL or 384 preps of 1000 µL sample volume.
QIAsymphony DSP Circulating DNA Kit (96)
Cat. No. / ID: 937555
The QIAsymphony DSP Circulating DNA Kit utilizes magnetic-particle technology for automated isolation and purification of human circulating cell-free DNA from biological specimens. Reagent Cartridges, accessories and Proteinase K vials for 96 preps of 2000 µL, 4000 µL, 6000 µL, 8000 µL or 10000 µL or 192 preps of 1000 µL sample volume. For sample volumes larger than 4000 µL, additional Proteinase K vials must be purchased separately.
QIAsymphony DSP Circulating DNA Maxi Kit (192)
Cat. No. / ID: 937566
The QIAsymphony DSP Circulating DNA Kit utilizes magnetic-particle technology for automated isolation and purification of human circulating cell-free DNA from biological specimens. Reagent Cartridges, accessories and Proteinase K vials are for 192 preps of 6000 µL, 8000 µL or 10000 µL sample volume.
Features
- For in vitro diagnostic use
- Lot-to-lot traceability
- Produced under GMP manufacturing conditions
Product Details
The QIAsymphony DSP Circulating DNA Kits provide reagent cartridges and reagents for fully automated and simultaneous purification of human circulating cell-free (ccf) DNA from human plasma and urine using the QIAsymphony SP instrument. Protocols are available from 1–10 mL sample volumes.
| QIAsymphony DSP Circulating DNA Kit | QIAsymphony DSP Circulating DNA Kit | QIAsymphony DSP Circulating DNA Maxi Kit | |
| Samples | 96 | 192 | 192 |
| Cat. no. | 937555 | 937556 | 937566 |
| Number of reactions | 96 (2 mL, 4 mL, 6 mL, 8 mL and 10 mL sample volume) 192 (1 mL sample volume) |
192 (2 mL and 4 mL sample volume) 384 (1 mL sample volume) |
192 (6 mL, 8 mL and 10 mL sample volume) |
| Reagent cartridge | 2 | 2 | 2 |
| QIAGEN Proteinase K | 3 x 10 mL* | 6 x 10 mL | 13 x 10 mL |
* Additional Proteinase K (cat. no. 19134) bottles should be ordered for 6 mL, 8 mL and 10 mL sample volume to process 96 samples in total.
Principle
QIAsymphony technology combines the speed and efficiency of anion exchange-based nucleic acid purification with the convenient handling of magnetic particles (see figure “ Schematic diagram of the QIAsymphony SP principle.”).
The QIAsymphony SP processes a sample containing magnetic particles as follows: A magnetic rod protected by a rod cover enters a well containing the sample and attracts the magnetic particles. The magnetic rod cover is positioned above another well and the magnetic particles are released. These steps are repeated several times during sample processing The QIAsymphony SP uses a magnetic head containing an array of 24 magnetic rods, and can therefore process up to 24 samples simultaneously.
See figures
Procedure
The QIAsymphony SP makes automated sample preparation easy and convenient. Samples, reagents and consumables, and eluates are separated in different drawers. Simply load samples, proteinase K, reagents provided in special cartridges, and preracked consumables in the appropriate drawer before a run. Start the protocol and remove purified DNA from the “Eluate” drawer after processing. Refer to the user manuals supplied with your instrument for operating instructions.

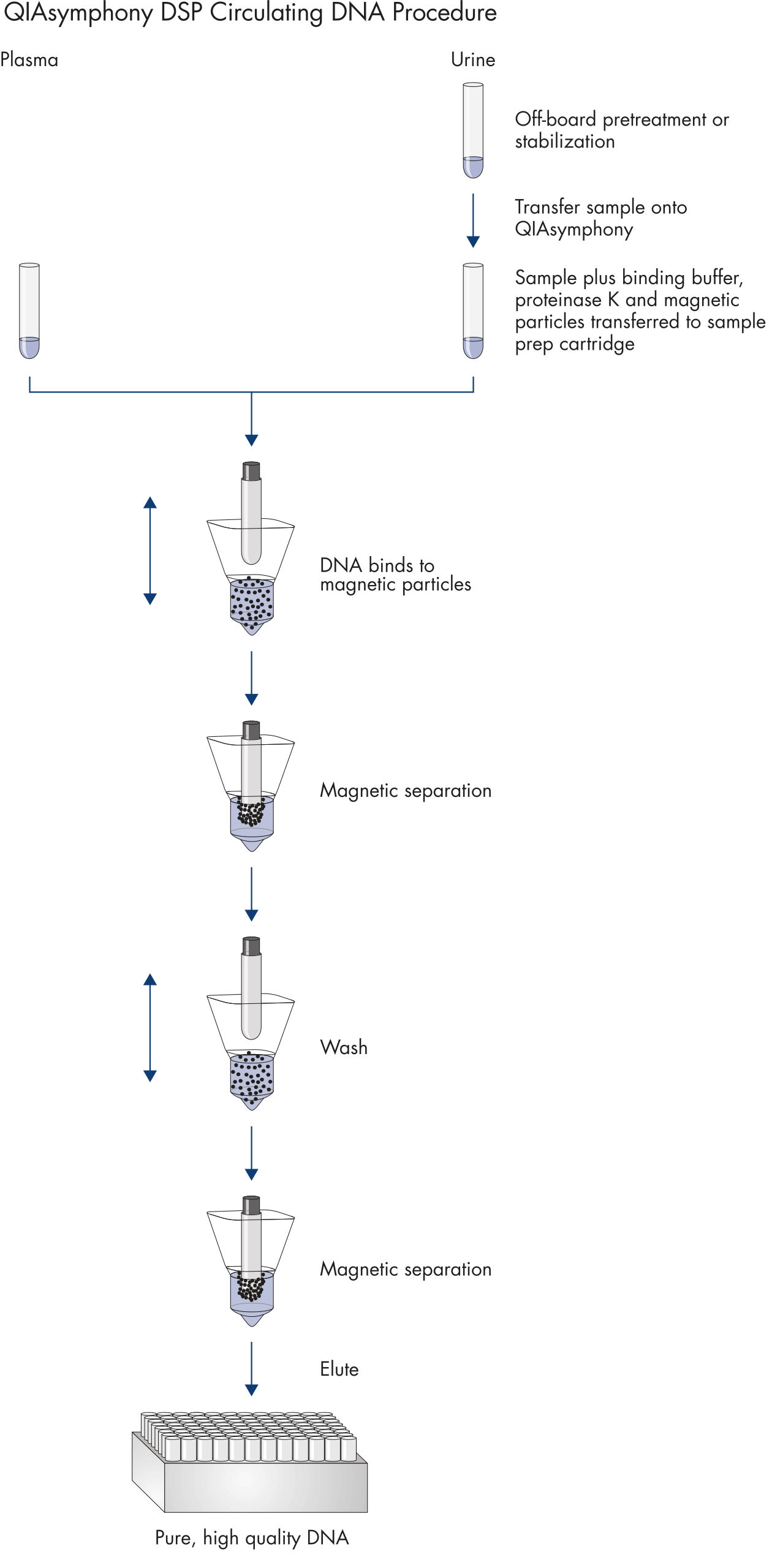

The purification procedure is designed to ensure safe and reproducible handling of potentially infectious samples, and comprises 3 steps: bind, wash, and elute (see figure “ QIAsymphony DSP Circulating DNA procedure.”). The user can choose between different sample input volumes.
To process 6–10 mL plasma or urine with the QIAsymphony DSP Circulating DNA Kit (96) (cat. no. 937555), additional Proteinase K (10 mL) (cat. no. 19134). must be purchased.
See figures
Applications
ccfDNA purified using the QIAsymphony DSP Circulating DNA Kit and the QIAsymphony SP is ready for use in a wide range of downstream applications, including NGS, digital, multiplex and quantitative real-time PCR.
Supporting data and figures
Efficient processing of magnetic particles.
The QIAsymphony SP processes a sample containing magnetic particles as follows. A magnetic rod protected by a rod cover enters a well containing the sample and attracts the magnetic particles. The magnetic rod with cover is positioned above another well and releases the magnetic particles. The QIAsymphony SP uses a magnetic head containing an array of 24 magnetic rods, and can therefore process 24 samples simultaneously. Steps 1 and 2 are repeated several times during sample processing.
Resources
Kit Handbooks (1)
Performance Data (1)
Technical Information and Important Notes (3)
Labware Documents (1)
Application/Protocol Documents for IVD Use (1)
Safety Data Sheets (1)
Certificates of Analysis (1)
Application Notes (1)
FAQ
What sample volume should be loaded on the QIAsymphony instrument for extraction of 2 ml and 4 ml samples?
